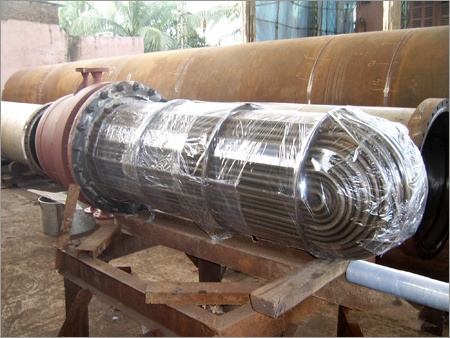

U Tube Bundle Heat Exchanger

About U Tube Bundle Heat Exchanger

Our company presents U Tube Bundle Heat Exchanger from our line of conventional chemical equipment to the esteemed clients from the Gulf, Africa, Bangladesh and Sri Lanka. This heat exchanger is engineered with Stainless Steel 304, Stainless Steel 316 and Stainless Steel 316L grades and other alloys, making use of state-of-the-art process technology, is widely applicable in food products, dyes and intermediates, resins, processing chemical, pharmaceuticals and in effluent treatments. This U Tube Bundle Heat Exchanger works well in heating liquids for methodical distillation.

The U-tube head (U) is a simple heat exchanger design that requires multiple U tubes, only one tube sheet, no rear-end head and no expansion joints. This assembly facilitates easy removal of the bundle. The thermal stress problem is eliminated as each of the tubes is free to contract/ expand separately. Only one issue is that replacement of individual tube is not possible with the exception being in the outer rows, and an even number of tube passes is required. Because of the 17.7 tube bend limit of Heat Exchanger, some tubes are lost in the center. The tube side mechanical cleaning of the bends is also tough. Due to flow-induced vibration, the tubes in the outermost row can experience problem. U-tube head heat exchanger is an economical design, since there is no need for the second tube sheet.

Products Features:

• A pale buffing finish

• Optimum energy efficiency

• Hassle-free operation

• Minimum maintenance requirement

Superior Material Options for Enhanced Durability

Our U Tube Bundle Heat Exchangers are constructed from premium-grade Stainless Steel (SS316/SS304), Copper, or Carbon Steel. Each material option is carefully selected to align with specific application requirements, offering excellent corrosion resistance and mechanical strength. The tube sheets are available in Stainless Steel or Carbon Steel based on your operational needs.


Versatile Applications Across Industries

Engineered for a wide spectrum of uses, these heat exchangers are integral to oil cooling, chemical processing, pharmaceutical manufacturing, food processing, and power generation. Their efficiency and adaptability make them a trusted asset in environments that require stringent thermal management.


Reliable Performance and Safety Assurance

Every heat exchanger is rigorously tested using hydrostatic and pneumatic methods to ensure leak-free operation. With segmental baffles for improved fluid dynamics, customizable heat transfer areas (5 30 m), and maximum capacity up to 60,000 kcal/hr, you gain both safety and optimal thermal performance with every unit.
